Q20. Refer to the exhibit.

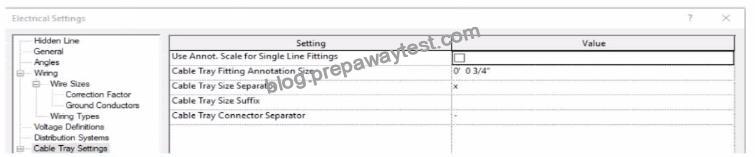

An electrical designer models a cable tray in a project and decides to check the box (or Use Annot. Scale tor Single Line Fittings and change the Cable Tray Fitting Annotation Size to 1/8″ (3 mm).
What is the result?
(The image is presented m Imperial units: 1 In = 25 mm (Metric units rounded].)

All cable tray fittings in the project are changed per the new settings.

All cable tray fittings in the project change per the new settings when a views detail level is set to Fine.

New cable tray fittings use the new settings in views set to 1/8″ (3 mm) scale.

New cable tray fittings use the new settings after the change.

Q21. Refer to exhibit.

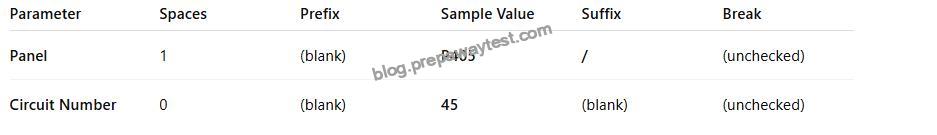

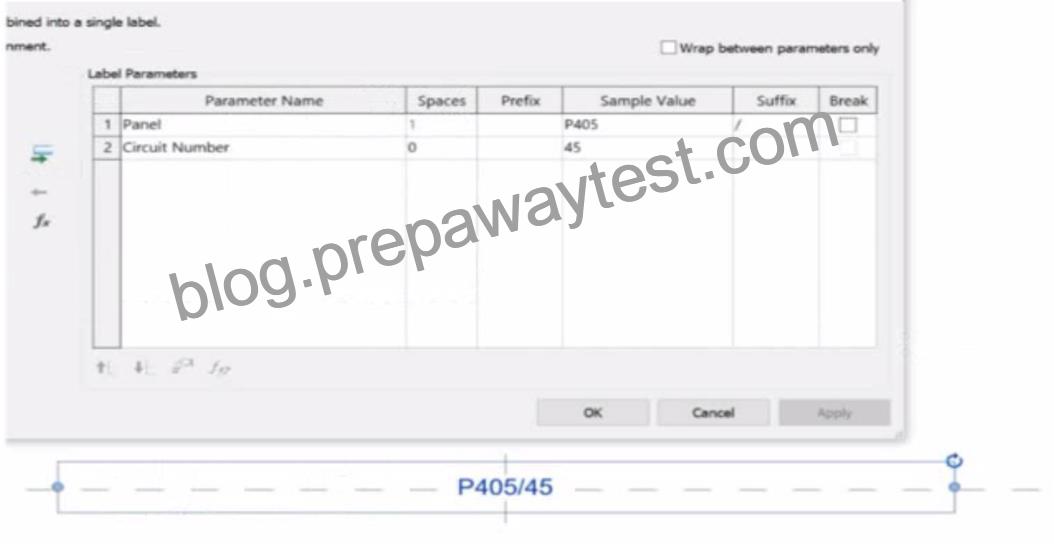

An electrical designer is working on an Electrical Device Panel-Circuit tag. The designer tags a receptacle using the tag properties shown in the exhibit The receptacle is assigned to panel P203 and circuit 2.4.
Which option shows the correct tag?

Q22. An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?

Set the distribution system for the family.

Set the family parameter to Shared.

Change the Voltage parameter value to non-zero.

Add an electrical connector to the family.

Q23. Refer to exhibit.

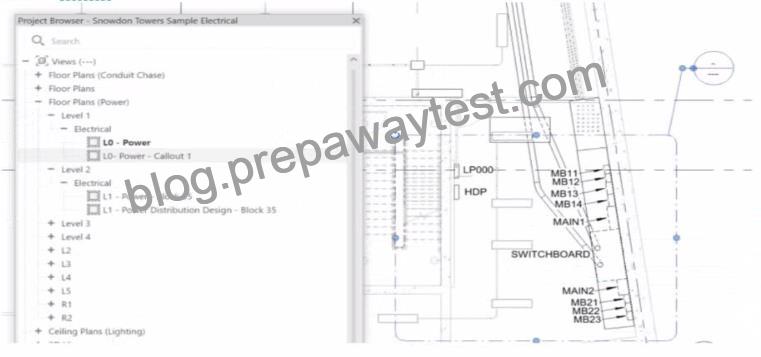

Select the callout and choose a detail view under Reference Other View.

Select the callout and change its type from the Type Selector.

Delete the existing callout and create a new one with the correct type.

Open the callout view from the Project Browser and change its type.

In Autodesk Revit, when an electrical designer creates a callout view, the software automatically generates a new dependent or independent view based on the selected callout type. However, if a callout is accidentally linked to the wrong or redundant view, the designer can easily reassign it to another existing view without recreating the callout. This can be done using the Reference Other View property in the Properties palette.
According to the Revit MEP User’s Guide (Chapter 47 “Views and Callouts”):
“To link a callout to an existing view rather than creating a new one, select the callout, and under the properties for that element, use Reference Other View to specify the desired target view.” This means that when the designer selects the callout (in this case, shown as “L0 – Power – Callout 1” in the Project Browser), they can modify the Reference Other View setting from the Properties palette to point to a different, pre-existing detail view or callout view-for example, one showing an enlarged power distribution layout or switchboard detail.
This is the most efficient workflow because:
It avoids recreating or redrawing the callout (unlike Option C).
It preserves all annotation and sheet referencing data.
It ensures alignment and consistency across sheet references.
The Smithsonian Facilities Revit Template User’s Guide reinforces this standard Revit practice:
“When a view reference or callout is incorrectly associated, use the Reference Other View property to redirect the annotation to an existing detail or dependent view.” Why the Other Options Are Incorrect:
B . Change its type from the Type Selector: Callout types control annotation style (not the referenced view).
C . Delete and recreate: This is unnecessary and inefficient.
D . Open the callout view and change its type: Callout type cannot be changed directly once created; it’s controlled by view properties.
Therefore, the correct and Revit-recommended approach is Option A: Select the callout and choose a detail view under Reference Other View.
References:
Autodesk Revit MEP User’s Guide – Chapter 47 “Views and Callouts,” pp. 1092-1097 Smithsonian Facilities Revit Template User’s Guide – Section 2.8.1 “View Types and Templates,” pp. 29-31 Autodesk Revit Electrical Design Essentials – “Callouts, Detail Views, and Referencing Workflows”

Q24. Refer to exhibits.

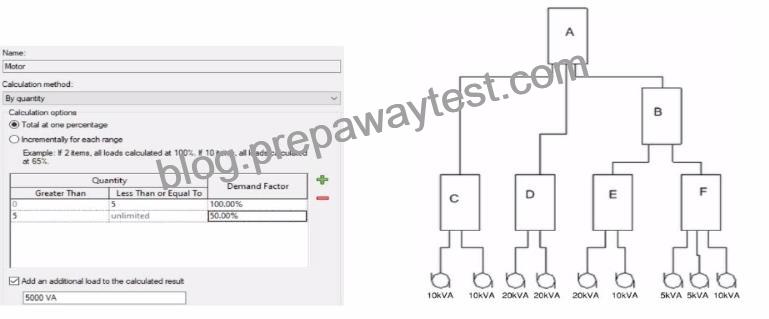

What is the demand load on Panel B?

65kVA

55kVA

30kVA

40kVA

Q25. An electrical designer is routing conduit through a building model to coordinate with other disciplines, the electrical designer wants to view selected components in a cropped 3D view.
With the conduit components selected, which tool should the designer use?

Selection Box

Default 3D View

Scope Box

Section Box

Q26. An electrical designer has noticed lighting fixtures present in an architectural linked model. Which tool should be used to place an instance of those fixtures in the current electrical model while maintaining the position from the architectural model?

Copy/Monitor

Coordination Review

Reconcile Hosting

Reload Latest

Q27. An electrical designer wants to add a parameter to a lighting fixture schedule without editing the families. Which parameter type should the designer use?

Schedule parameter

Project parameter

Global parameter

Family parameter

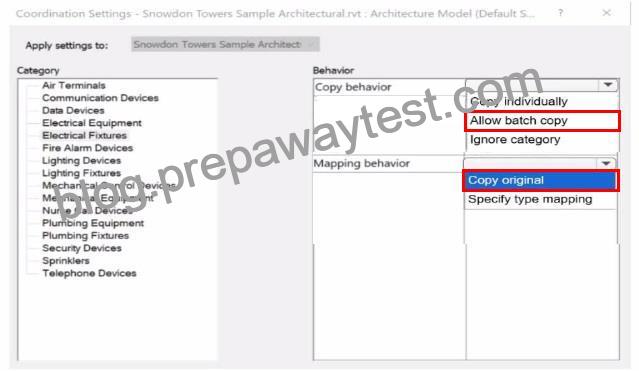

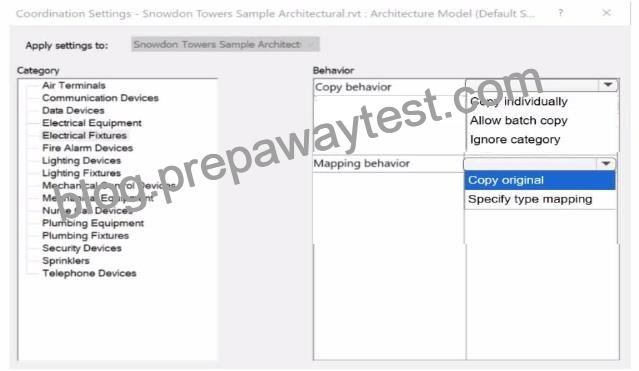

Q28. An electrical designer receives an architectural model and links it into the electrical model.
The designer wants to use the Copy/Monitor tool to copy the exact electrical fixtures created by the architect.
The designer also wants the software to automatically detect new electrical fixtures added to the architectural model.
Select the correct coordination settings from the drop-down lists

Q29. An electrical designer is working on a project with multiple buildings. The designer wants to organize the Project Browser by building For example, all views related to Building A will be sorted under Building A. and all views related to Building B will be sorted under Building B.
The designer decides to create a new parameter, assign it to views, and then sort the Project Browser according to the new parameter.
Which parameter should the designer use?

A reporting parameter

A global parameter

A project parameter

A family parameter

Q30. Refer to exhibits.

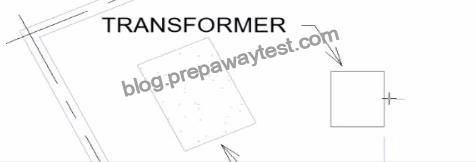

When loaded into a project, the family displays as below in plan view.

The electrical designer is satisfied with the line color and weight of the transformer because it matches all other electrical equipment in the project. However, the designer wants the housekeeping pad to display with different line properties as shown below.

How can this be achieved?

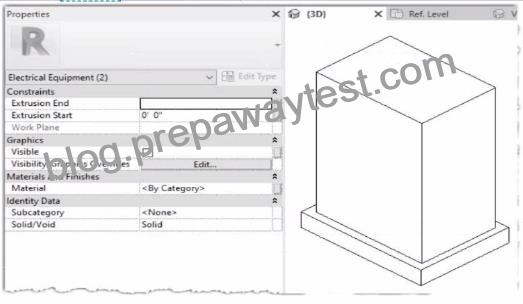

An electrical designer creates a simple family of a transformer with a concrete housekeeping pad using two rectangular extrusions. Both extrusions and their properties within the family editor are shown.

Within the family editor, select the housekeeping pod object and change it from a solid to a void.

Within the project, right-click and select Override Graphics in View from the context menu. Edit the line properties as desired.

Within the family editor, create a new object style subcategory with the desired properties. Assign that subcategory to the housekeeping pad object.

Within the family editor, right-click the housekeeping pad object and select Visibility from the context menu. Edit the line properties as desired.

In Autodesk Revit Electrical Design, when customizing a family-such as a transformer with a housekeeping pad-each element within the family can have its own subcategory under the parent category (in this case, Electrical Equipment). Subcategories are critical for controlling line weight, color, and material properties independently in project views and visibility settings.
The issue described is that the transformer and its concrete pad currently share the same default category (Electrical Equipment) and therefore use identical line weights and colors in plan view. The designer wants the housekeeping pad to display differently – for example, with a lighter or dashed outline.
According to the Autodesk Revit MEP User’s Guide (Chapter: Creating and Editing Families):
“To control the visibility or graphical appearance of individual components within a family, create a new Object Styles subcategory under the parent category. You can then assign any solid or void geometry in the family to that subcategory. When loaded into a project, the subcategory can be independently controlled through Visibility/Graphics (VG) settings.” This is the exact and recommended workflow for differentiating line appearances between elements in the same family.
Steps to achieve this:
In the Family Editor, open Manage tab ➤ Object Styles.
Under the Model Objects tab, click New to create a new subcategory (e.g., “Housekeeping Pad”).
Set the desired line weight, color, or material properties.
Select the housekeeping pad extrusion in the model.
In the Properties palette, under Identity Data → Subcategory, choose Housekeeping Pad.
Reload the family into the project.
You can now modify or control its visibility independently in project views.
Why the other options are incorrect:
A . Change to void: A void removes geometry, not graphical appearance.
B . Override Graphics in View: Applies only in a single view, not globally across the project.
D . Visibility from context menu: Controls whether the object is visible, not its line properties.
Thus, the most efficient, parametric, and Revit-standard method is to use subcategories within the family to apply distinct graphical controls.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 53: Creating Families – Managing Object Styles, pp. 1248-1251.
Autodesk Revit Architecture 2020 Help, “Assigning Geometry to Subcategories in Families.” Smithsonian Facilities Revit Template User’s Guide (2021), Section 8.4.1 – Electrical Equipment Family Standards and Subcategories.

Q31. A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?

Use the Manage Templates command to edit and apply the template changes to all panel schedules.

Select all panel schedules in the Project Browser, right-click and choose Apply Template Properties, and select the desired template.

Assign the desired view template to the panel schedules in the Properties panel.

Edit a panel schedule, right-click and choose Duplicate View, and duplicate changes lo desired panel schedules.

Q32. An electrical designer Is working on a workshared model.
Which two worksharing display settings can the designer use to visualize model elements that have no ownership? (Select two.)

Worksets

Checkout Status

Gray Inactive Worksets

Model Updates

Owners

Q33. Refer to exhibit.

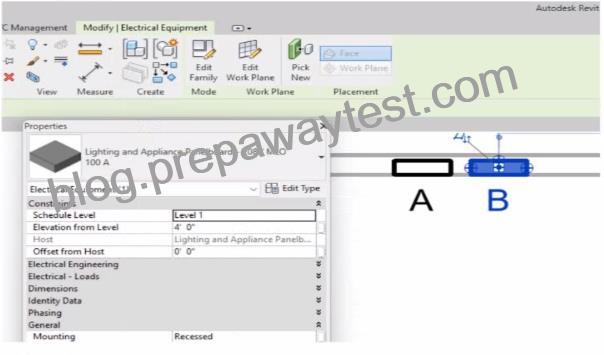

An electrical designer has accidentally hosted Panel B to Panel A. Select two ways the designer can correct hosting. (Select two.)

Use the Pick New command in the Work Plane panel.

Edit the Mounting value in the Properties palette.

Use the Move command.

Edit the Host value in the Properties palette.

Use the Edit Work Plane command

In Autodesk Revit’s Electrical discipline, when electrical components such as panelboards are hosted incorrectly (for example, Panel B hosted to Panel A instead of a wall or level), the hosting relationship must be corrected by reassigning the work plane or host. This is essential because hosted electrical elements depend on the geometry or level of their host for placement, alignment, and coordination.
According to the Revit MEP User’s Guide (Chapter 45 “Work Planes and Element Hosting”):
“If a hosted element is placed incorrectly or the host has changed, use the Edit Work Plane or Pick New commands to redefine its host or work plane.” Here’s how these two tools apply:
Pick New (Option A)
Located under the Work Plane panel on the Modify tab, this command allows you to select a new face or host (e.g., a wall, ceiling, or floor) for the existing component. It effectively reassigns the element’s host without deleting or recreating the element.
“Use Pick New to specify a different face or surface as the host for a component that was incorrectly placed.”
Edit Work Plane (Option E)
This command lets the designer redefine the reference level or named work plane to which an element is associated. For hosted electrical equipment (like lighting or panels), this ensures the object references the correct structural or architectural surface.
“To correct hosting errors, open Edit Work Plane from the Modify tab, and assign a new named plane, level, or face.” Incorrect Options Explanation:
B . Edit Mounting value – changes only how the panel is mounted (e.g., recessed or surface), not the host itself.
C . Move command – repositions the element but does not change the hosting relationship.
D . Edit Host value – the “Host” parameter is read-only; it cannot be edited directly.
Thus, the correct methods to rehost Panel B from Panel A to the correct wall or work plane are through Pick New and Edit Work Plane, ensuring proper association and maintaining system connectivity.
References:
Autodesk Revit MEP User’s Guide – Chapter 45 “Work Planes and Hosting,” pp. 1068-1072 Smithsonian Facilities Revit Template User’s Guide – Section 6.2.3 “Complex Geometry and Multiple Parametric Relationships,” p. 57 Autodesk Revit Electrical Design Essentials – “Rehosting Electrical Equipment and Devices”

Q34. Refer to the exhibit.

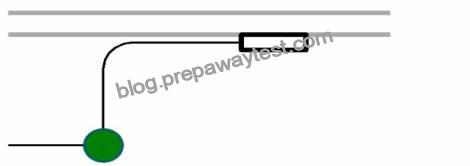

Project Browser > Conduits > Conduits with Fittings > Single Line Symbology

Properties > Edit Type > Single Line Symbology

Object Styles > Conduits > Rise/Drop > Single Line Symbology

Electrical Settings > Conduit Settings > Rise Drop > Single Line Symbology

Q35. Refer to exhibit.

An electrical designer is placing electrical equipment. When the electrical designer selects a component in the contextual ribbon, the Placement panel appears in the contextual ribbon.
Which condition does this Placement panel indicate?

The component was created using a lace-based template.

The component was created using a wall-based template

The component was created using a floor-based template.

The component is set to use the Always Vertical option

The Placement panel shown in the exhibit – with options such as Place on Vertical Face, Place on Face, and Place on Work Plane – is displayed only when the family being placed was created using a wall-hosted (face-based or vertical face-based) template. This indicates that the family is designed to be hosted on a vertical surface, such as a wall, rather than a floor or level.
According to the Autodesk Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”):
“When placing a hosted family, the placement options depend on the family’s host type.
Wall-based families display the Place on Vertical Face option.
Ceiling-based families display Place on Face or Place on Work Plane.
Floor-based families display Place on Work Plane only.”
The “Place on Vertical Face” option specifically appears for wall-hosted or face-based components because it allows the user to select a vertical plane, typically representing a wall surface. This confirms that the family template used during creation was Wall-based (commonly “Electrical Equipment – Wall Based.rft” or “Generic Model – Wall Based.rft”).
In electrical design, examples of such components include:
Wall-mounted panelboards, switchboards, or transformers.
Receptacles or lighting control devices hosted on walls.
The Smithsonian Facilities Revit Template Guide reinforces this explanation:
“Wall-based components, such as surface-mounted panels, display the Place on Vertical Face option. This confirms the family is wall-hosted and cannot be placed freely on floors or reference planes.” Why the Other Options Are Incorrect:
A . Face-based template: Would show “Place on Face” (not necessarily limited to vertical).
C . Floor-based template: Displays “Place on Work Plane” only.
D . Always Vertical option: Controls orientation (rotation relative to surface), not placement host type.
Therefore, the Placement panel confirms the component was created using a wall-based family template, allowing it to be attached only to vertical surfaces.
References:
Autodesk Revit MEP User’s Guide – Chapter 44 “Creating and Modifying Families,” pp. 1028-1032 Smithsonian Facilities Revit Template User’s Guide – Section 7.4 “Family Hosting and Placement Behavior,” pp. 72-74 Autodesk Revit Electrical Design Essentials – “Wall-Based Equipment and Hosting Parameters in Family Creation”

Q36. Refer to exhibit.

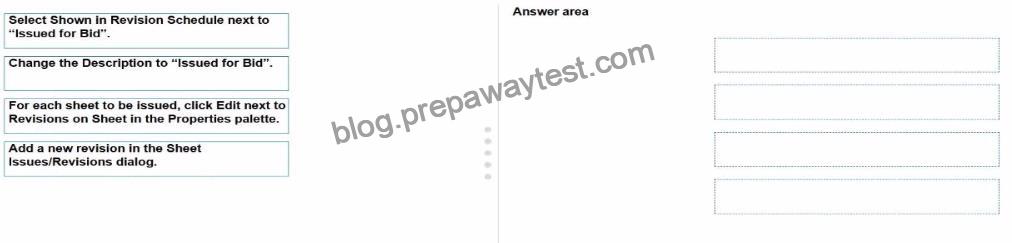

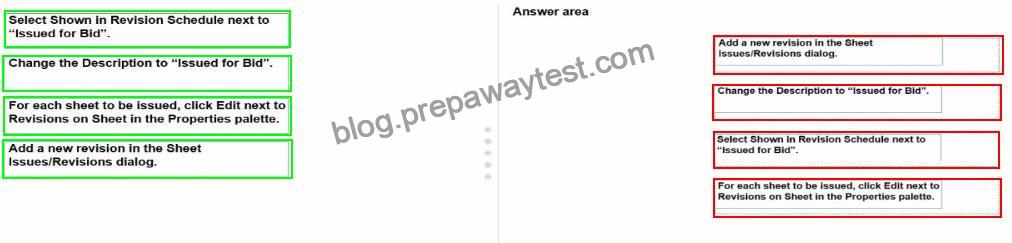

An electrical designer is issuing several sheets and wants ‘Issued for Bid” to appear in the revision schedule of the title block. Drag and drop into the correct order to indicate how this can be accomplished to only the sheets that are being issued.

Q37. Refer to exhibit.

An electrical designer wants to place electrical equipment on the pad.
How should the component be aligned to the pad before placement?

Start the Align tool. tab to select the object edge, and then select the equipment edge.

Start the Align tool and select the edges to be aligned.

Place the cursor over an edge of the object and then press Spacebar.

Place the cursor anywhere over the object and then press Spacebar.

Q38. An electrical designer is creating an electrical equipment family which will host conduit that can be modeled from any point on a specific side of the equipment. How should this be accomplished?

Select the conduit connector and edit the connector dimensions

Click Conduit Connector, click Individual Connector, and then select the desired reference plane.

Click Conduit Connector click Surface Connector, and then select the desired face.

Select the conduit connector and edit the connector type in the Properties palette

Q39. Which Revit command is used to map a Keynote Table file?

Keynote Manager

Element Keynote

Keynote Legend

Keynoting Settings

Q40. An electrical designer needs to add a drafting view to a model from another project. What is the method to do this?

Select Transfer Project Standards, select the desired project, and then select the drafting view.

Select Open, select the desired project, right-click the desired drafting view, and then copy/paste

Select Link Revit, browse to the desired model, and then select desired drafting view

Select Insert from File, select Insert Views from File, browse to the desired project, and then select the drafting view.

Q41. Elements are added to a design option. The electrical designer needs an additional design option in the option set. All of the same elements are needed in both design options Which two methods will duplicate the element for the new design option? (Select two.)

Open two views side by side and drag and drop from one view to another.

Open the new design option and pick Reveal Hidden to select the items to copy.

In the Design Options dialog, pick the original design option and select Duplicate.

Use Copy to Clipboard and Paste > Aligned to Current View in the new design option.

Select the items and use Add to Set.

In Autodesk Revit, Design Options are used to explore multiple design alternatives within the same project environment. This feature is often employed by electrical designers to model different lighting layouts, circuiting approaches, or equipment placements without duplicating the entire project.
When an additional design option is created within the same option set, and the designer needs to include all the same elements that already exist in another design option, Revit offers two effective ways to duplicate these elements while preserving their type, parameters, and host relationships.
According to the Autodesk Revit MEP User’s Guide (Chapter: Working with Design Options), it clearly describes:
“To create a copy of an existing design option within an option set, open the Design Options dialog box, select the desired option, and click Duplicate. This creates a new option containing identical elements and maintains their relationships and constraints.” This confirms Option C as correct because duplicating an option from the Design Options dialog automatically replicates all its elements into the new design option within the same option set.
Furthermore, the guide continues:
“Alternatively, when working with a specific design option view, you can use the Copy to Clipboard and Paste Aligned > Aligned to Current View commands to duplicate selected elements into another active design option. These elements are placed in the same location and remain associated with the new design option.” This validates Option D as the second correct method, allowing manual duplication of elements between options while keeping spatial alignment intact.
Other options listed are incorrect for the following reasons:
A (Drag and Drop) is not supported between design options; it only works between views in the same option.
B (Reveal Hidden) only displays hidden elements; it doesn’t expose design option geometry for copying.
E (Add to Set) transfers elements into the same design option set, not between individual design options.
Therefore, the two valid and Autodesk-confirmed methods to duplicate all elements between design options are:
C). Duplicate from Design Options dialog, and D. Copy/Paste Aligned to Current View.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 13: Working with Design Options, pp. 364-367.
Autodesk Revit Architecture 2020 Help, “Duplicating Design Options and Copying Elements Between Options.” Smithsonian Facilities Revit Template User’s Guide (2021), Section 6.3.2: Managing Design Options in Coordination Views.

Q42. Refer to exhibit.

A family in a project contains the following types:
The following edits are made in the Family Editor and loaded into the project:
1. The type Plain is renamed to Standard
2 A new type is added named GFCI
Which types does this family now have in the project?
1. The type Plain is renamed to Standard

Above Counter. Plain. Standard

Above Counter. GFCI. Standard

Above Counter. GFCI. Plain. Standard

Above Counter. Standard

Q43. What should an electrical designer do to associate a lighting device with light fixtures in a model?

Create a switch system using the light fixtures to define the system and add the switch.

Create an electrical circuit including the light fixtures and switch as one selection.

Create a switch system by selecting a switch and then adding lights

Create an electrical circuit using the light fixtures to define the system and add the switch.

Q44. An electrical designer needs to add spaces to a model displaying the architectural room name and number. What should the designer do before creating the spaces?

Select Room Bounding from the architectural link’s type properties.

Select Save Positions for the architectural links in the Manage Links dialog.

Use Transfer Project Standards to Import rooms from the architectural model.

Change the architectural model display settings to By Host View,

Autodesk RVT_ELEC_01101 Exam Syllabus Topics:

Topic	Details
Topic 1	Families: This section of the exam measures the skills of BIM Modelers and focuses on creating and editing Revit families. It includes defining MEP connectors, understanding system and component family types, configuring family categories, and setting up light sources. The section also assesses parameter creation, annotation family setup, and controlling element visibility to ensure effective customization and reuse across electrical projects.
Topic 2	Modeling: This section of the exam measures the skills of Electrical Designers and covers creating and managing electrical elements within Revit. It includes adding electrical equipment such as panelboards and transformers, configuring circuits and low-voltage systems, and using the System Browser for navigation. Candidates must also demonstrate the ability to model connecting geometry, including conduits, cable trays, and wiring, with appropriate settings and fittings.
Topic 3	Analysis: This section of the exam measures the skills of Electrical Engineers and focuses on performing analytical tasks in Revit. It includes conducting load calculations, conceptual lighting analysis, and configuring electrical settings for load classifications and demand factors. Candidates must show the ability to use Revit’s analysis tools to ensure proper electrical design performance and energy efficiency.
Topic 4	Documentation: This section of the exam measures the skills of Revit Technicians and covers manipulating views, templates, and schedules to produce accurate documentation. It includes managing panel schedules, creating various view types such as legends, callouts, and 3D views, and applying phasing and revision management. Candidates are also tested on annotation tools, including tags, keynotes, and note blocks, to ensure clarity and consistency in project documentation.
Topic 5	Collaboration: This section of the exam measures the skills of Project Coordinators and covers collaboration workflows in Revit. It includes working with imported and linked files, managing worksharing concepts, and using interference checks. Candidates are also evaluated on data coordination through copy monitor tools, exporting to different formats, managing design options, and transferring project standards to ensure effective teamwork in shared environments.

Updated RVT_ELEC_01101 Certification Exam Sample Questions: https://www.prepawaytest.com/Autodesk/RVT_ELEC_01101-practice-exam-dumps.html

Autodesk RVT_ELEC_01101 Exam Syllabus Topics:

Leave a Reply Cancel reply
